The FASS Fuel Systems Filter Pack XL (FP3000XL) provides a comprehensive filtration solution for FASS fuel systems, including the Competition, Industrial, Titanium, and Titanium Signature Series. This kit includes the XWS3002XL Extreme Water Separator and the PF3001XL Particulate Filter, designed to enhance fuel purity and system longevity.
Key features and specifications:
-
XWS3002XL Extreme Water Separator:
- Rated at 2 micron absolute, offering high-efficiency water separation.
- Designed to trap over 99% of water, eliminating the need for a drain.
- Must be used in conjunction with the PF3001XL.
- This filter is to be placed on the pressure side of the FASS fuel system.
-

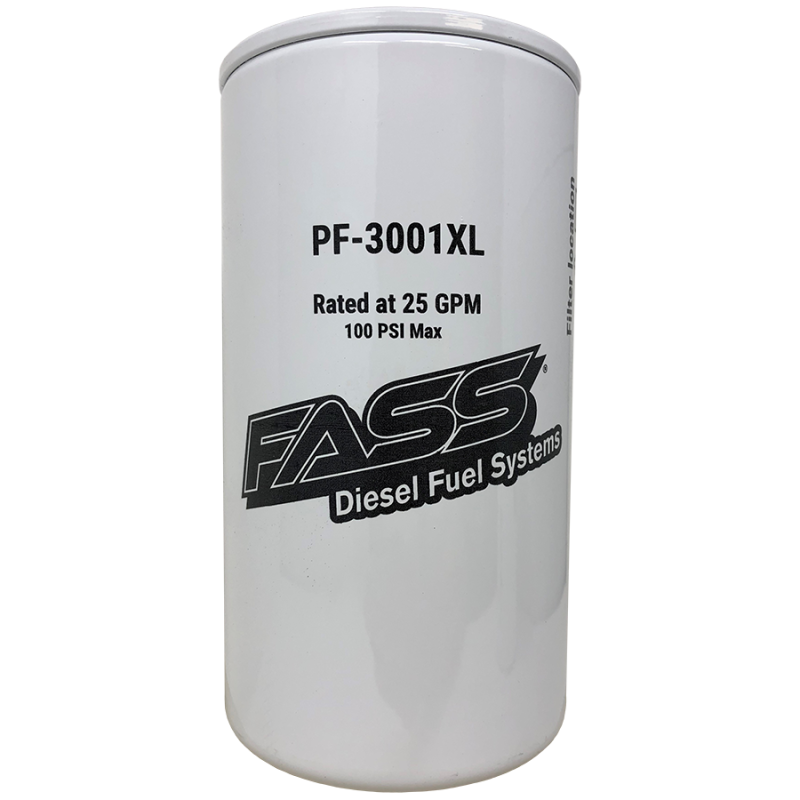

PF3001XL Particulate Filter:
- Rated at 144 microns, designed to remove larger fuel particulates.
- Placed on the suction side of the system to reduce cavitation and increase flow.
- Helps lower the sound output of the FASS system.
- Must be used in conjunction with the XWS3002XL.
-
Compatibility:
- Compatible with FASS Competition Series, Industrial Series, FASS Titanium Series, and FASS Titanium Signature Series Systems.
-
Contents:
- One (1) XWS3002XL Extreme Water Separator.
- One (1) PF3001XL Particulate Filter.
-
Installation Note:
- Please refer to the location diagram provided on the new filters for correct placement within the system.
-
Alternative:
- For applications where the XL filters are incompatible due to length constraints, standard-length FASS filter packs are available.
The replacement of the older filters FF-3003/FF-3010 and FS-1001/FS-1020 requires the use of the new filters XWS3002XL and PF3001XL.
