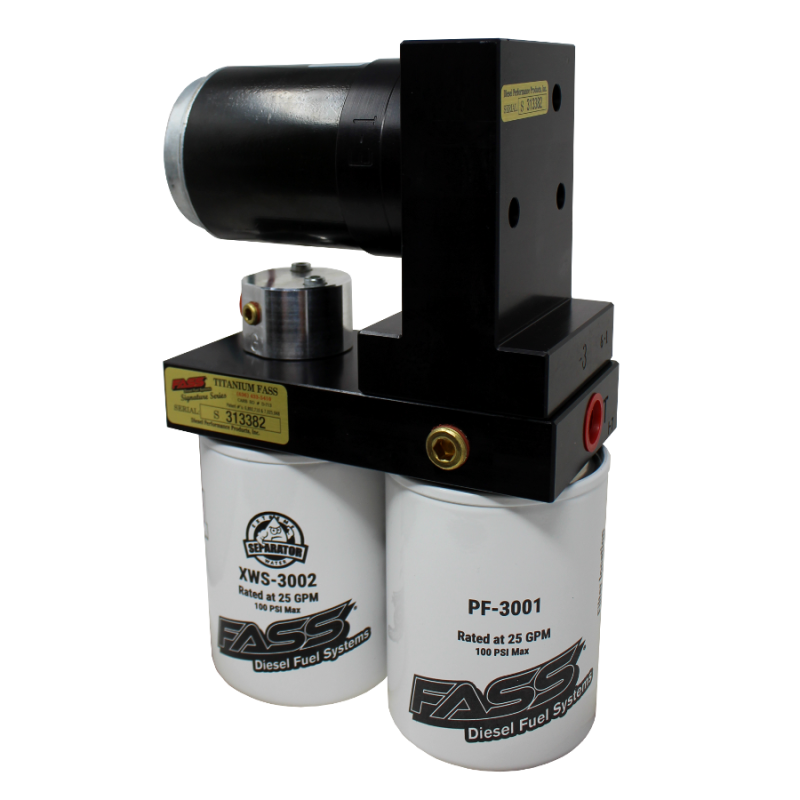

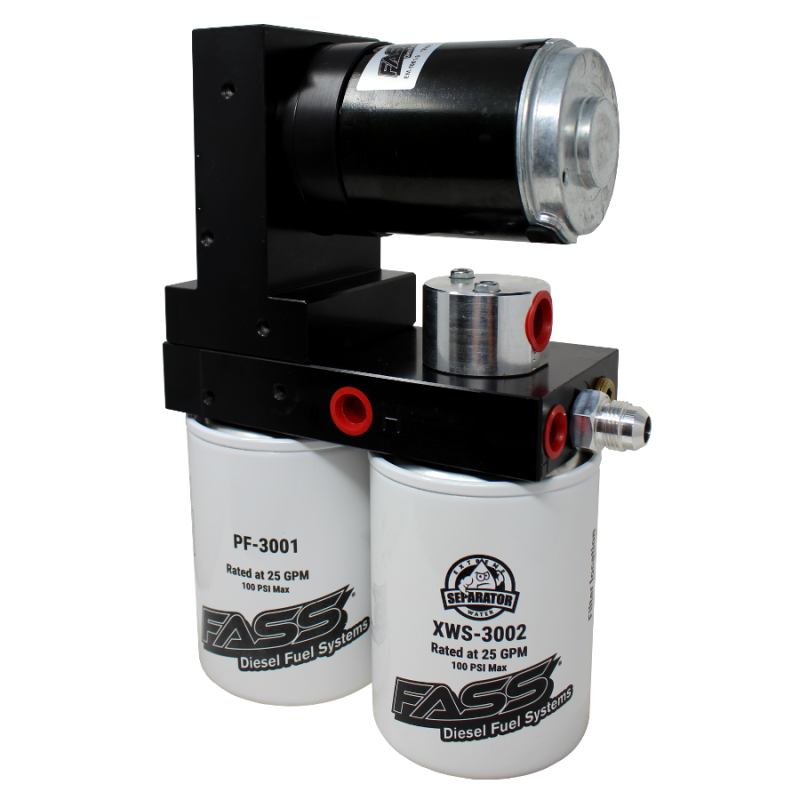

The FASS Titanium Signature Series 165GPH Fuel System is designed for 2015-2016 GM Duramax 6.6L diesel engines. This system offers a solution to the factory fuel delivery limitations found in these vehicles.
A factory fuel system in GM Duramax LML diesel engines requires the CP4 injection system to draw fuel under vacuum, which can strain the system and introduce air into the fuel. The Titanium Signature Series addresses this by providing a reliable, high-performance fuel delivery solution.
Key features and benefits of the FASS Titanium Signature Series include:
-
165 Gallons Per Hour Flow Rating: Supports engines with significant fueling upgrades.
-
2 Micron Filtration Rating: Enhanced filtration to protect the injection system.
-
Water Separation: Built-in water separation filter to remove harmful contaminants.
-
Air/Vapor Removal: Patented air/vapor removal process to ensure clean fuel delivery.
-
Performance Radius Cuts (PRC): Advanced machining to improve fuel flow and prevent air reintroduction.
-
Mass Flow Return (MFR): Continual fuel polishing to maintain clean fuel delivery and prevent cavitation.
-
FASS Whisper Technology (FWT): Designed to reduce noise levels while maintaining flow rates.
-
Bolt-On Bracket Mounts: Simplified installation using factory bed bolt locations.
-
Preset 8-10 PSI Fuel Pressure: Optimal fuel pressure for engine performance.
-
Complete Replacement System: A comprehensive solution for fuel delivery.
-
Improved Cold Weather Starts: Enhanced fuel delivery for reliable cold-weather performance.
-
Reduced Emissions: Decreases carbon monoxide and carbon dioxide emissions.
-
½ Inch Fuel Lines and Ports: High-flow fuel lines for optimal delivery.
-
Optional Electric Heater Ports & Fuel Pressure Gauge Port: Adding extra features for the user.
-
Limited Lifetime Warranty & 1,000,000 Mile Motor: Ensuring long term reliability.
-
30,000 Mile Filter Life Expectancy: Extended filter life.
The system is engineered to extend the life of injectors and the injection system by removing water, air, and debris from the diesel fuel. Note: Installation on a cab and chassis may require modifications.
