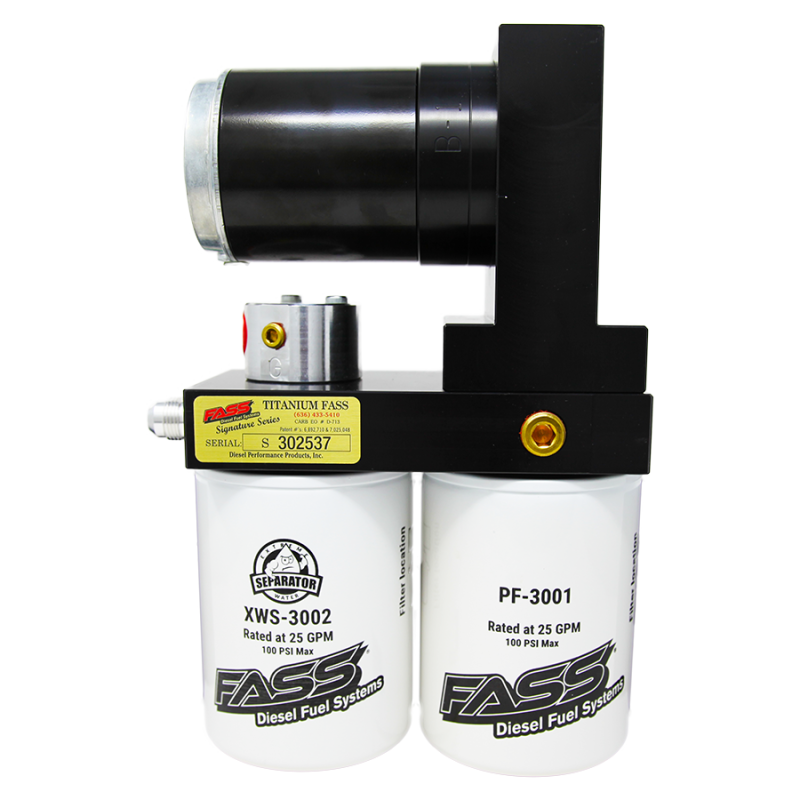

The FASS Titanium Signature Series 100GPH Fuel System (TS D08 100G) provides enhanced fuel delivery and filtration for 2015-2016 GM/Chevy Duramax 6.6L engines, addressing the limitations of the factory fuel system.
A FASS Fuel System offers a significant upgrade for GM Duramax LML diesel engines, which lack a factory-installed fuel lift pump common in other diesels. This absence forces the CP4 injection system to draw fuel under vacuum, placing undue stress on the CP4 and increasing the risk of air intrusion. The Titanium Signature Series is designed to mitigate these issues.
Key features and benefits of the Titanium Signature Series include:
-
High Flow Rate: Rated at 100 gallons per hour, supporting engine performance and future fueling upgrades.
-
Advanced Filtration: Provides 2-micron filtration, water separation, and FASS's patented air/vapor removal, extending the life of injectors and the injection system.
-
Whisper Technology (FWT): Reduces operating noise while maintaining fuel flow, catering to modern quiet diesel engines.
-
Performance Radius Cuts (PRC): Smooths fuel flow within the aluminum housing, preventing air and vapor reintroduction.
-
Mass Flow Return (MFR): Continuously polishes fuel, ensuring clean fuel delivery and aiding in cold weather operations with optional heater ports.
-
Bolt-On Bracket Mounts: Simplifies installation using factory bed bolts, eliminating the need for drilling or welding.
-
System Specifications:
- Preset 8-10 PSI fuel pressure.
- Complete replacement system.
- ½ inch fuel lines and ports.
- Optional electric heater and fuel pressure gauge ports.
- 1,000,000 mile motor.
- 30,000 mile filter life expectancy.
This system is engineered to address common Duramax injector failures caused by fuel-related issues. FASS Fuel Systems prioritizes engineering quality, resulting in a low motor failure rate and unique design features. Note: Cab and chassis installations may require modifications.
