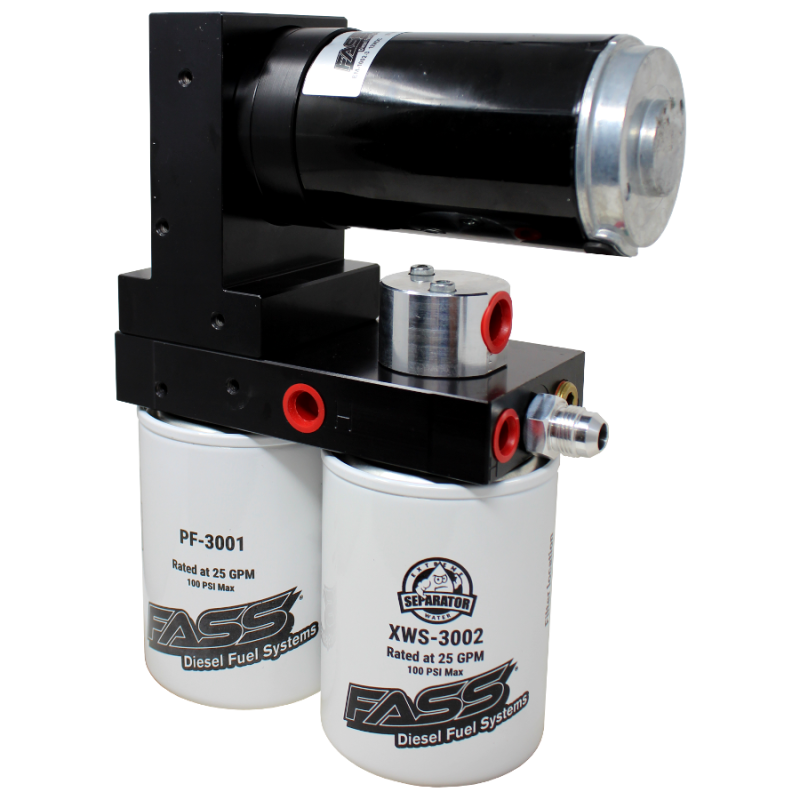

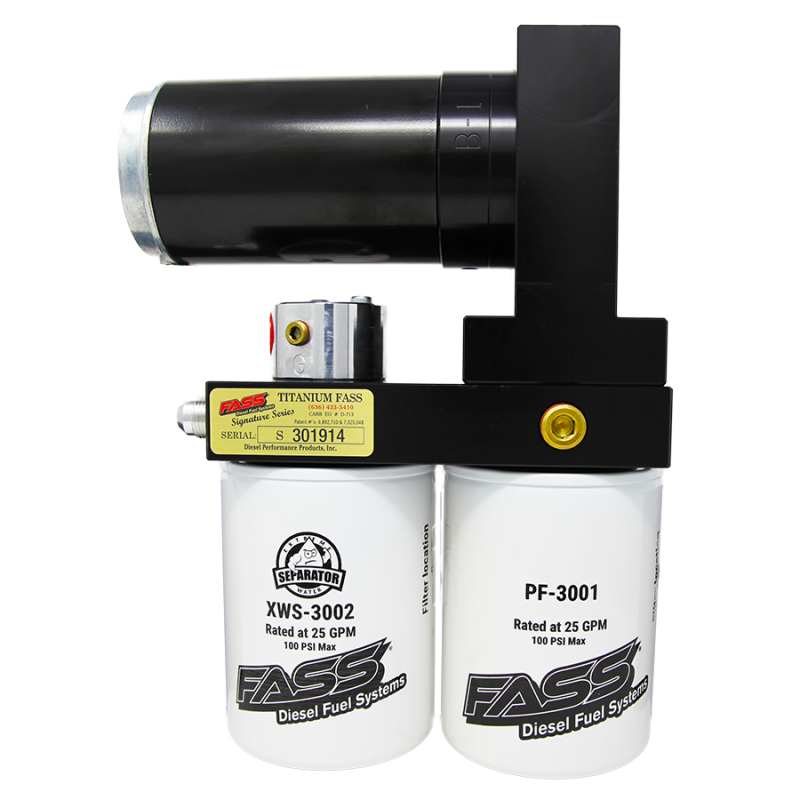

The FASS Titanium Signature Series 165GPH Fuel System is designed to provide consistent fuel delivery for Dodge RAM Cummins 5.9L and 6.7L engines (2005-2018 & 2021-2024 models). This system focuses on filtration and fuel flow, supporting engines up to 600-900hp.
Key features of this system include:
-
Advanced Filtration:
- 2-micron filtration rating.
- Integrated water separation filter.
- Patented air/vapor removal process.
-
Fuel Delivery:
- 165 gallons per hour flow rating.
- ½ inch fuel lines and ports.
-
Installation and Design:
- Bolt-on bracket mounts, utilizing factory bed bolts.
- Bulkhead fitting suction tube and return, machined from 6061 T-6 Billet Aluminum.
- PTFE Teflon pickup tube.
- Performance Radius Cuts (PRC) to improve fuel flow and prevent air reintroduction.
- Mass Flow Return (MFR) technology for continuous fuel polishing.
-
Operational Enhancements:
- Preset 16-18 PSI fuel pressure.
- FASS Whisper Technology (FWT) for reduced noise.
- Optional electric heater ports and fuel pressure gauge port.
-
Durability and Reliability:
- Limited lifetime warranty.
- 1,000,000-mile motor.
- 30,000-mile filter life expectancy.
-
System Benefits:
- Improved cold weather starts.
- Decreased carbon monoxide and carbon dioxide emissions.
- Improved fuel volume delivery.
- Smoother Engine Idle.
- Fuel Mileage Improvement.
The system includes two FASS BHF-1005 (Bulkhead and Suction Tube Kit). These fittings allow for direct plumbing of the suction and return lines to the fuel tank module. The pickup tube’s Teflon construction allows for adjustments to various tank depths.
Note: Installation on cab and chassis models may require modifications.
