AutoMeter electrical system gauge is designed to monitor a vehicle's electrical system's performance precisely. It employs a patented air core meter movement, allowing for accurate readings across a voltage range of 8-18 volts in negative ground electrical systems. The straightforward installation process makes this gauge a valuable tool for preventing roadside breakdowns.
Features

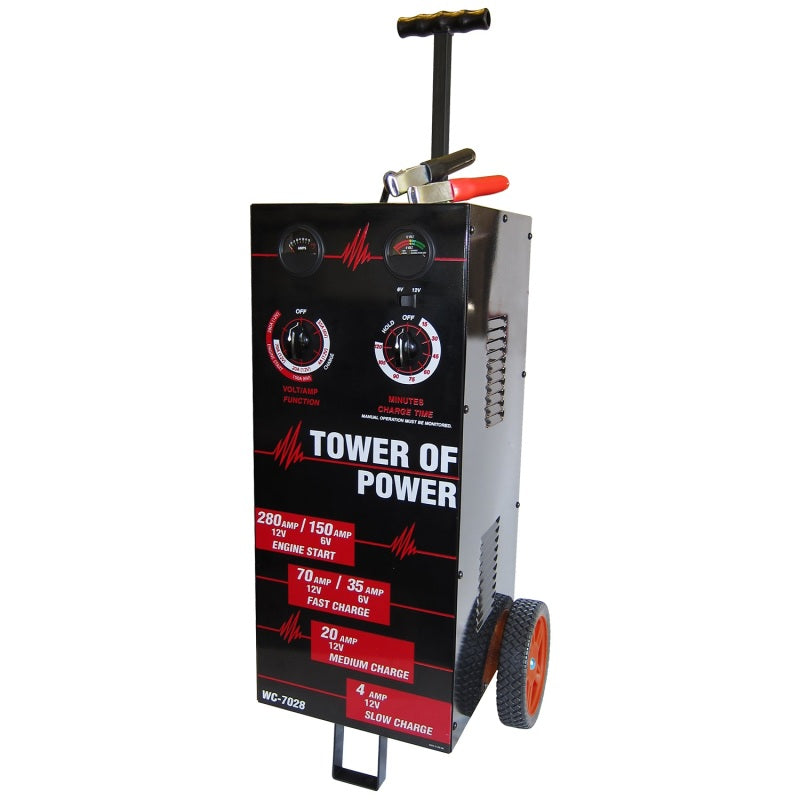

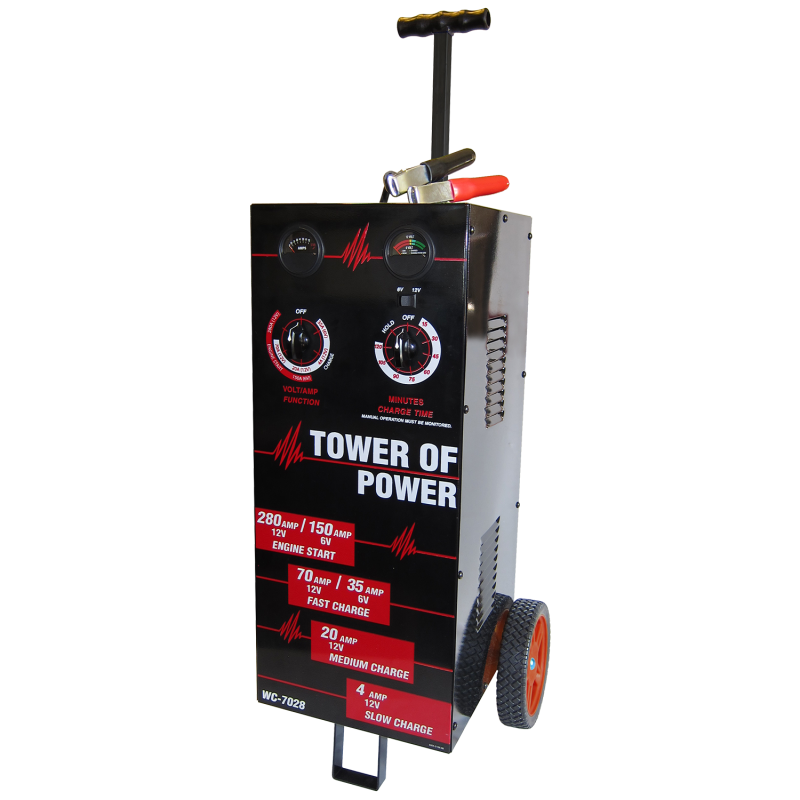

Charge Type Manual
Battery Voltage 6v, 12v
12v Charge Output Current 70, 30 or 4 amps
12v Engine Start/Jump 280 amps
6v Charge Output Current 40 amps
6v Engine Start/Jump 150 amps
Charge Timer w/Hold 0-120 min
Leads 6ft, 6 AWG
Power Cord 6ft, 14 AWG
Voltmeter Yes
Ammeter Yes
DC Circuit Breaker Self-Resetting
Weight 47lbs
Dimensions 38" x 14" x 14"
Feature Points
• Tall, slender design places controls at an easy to adjust level and allows unit to fit easily between cars and lifts in the shop
• Overwound, ultra heavy-duty transformer with 100% copper windings provides uninterrupted, high current flow for maximum charging performance and efficiency
• Solid copper 2 gauge wiring and high quality, heavy duty clamps for optimum conductivity and extended service life
• Larger wheels designed to easily roll over obstacles such as shop air hoses or gravel
