AEM 's Universal High Flow -10 AN Inline Filter is designed to maximize flow while maintaining filtration. It features -10AN female fittings on the machined end caps, enabling a flow rate of up to 12.32 gpm at 45 PSI and 2.63 gpm at 6 PSI. Leak-proof o-ring grooves are incorporated into the end caps, and Viton seals are used throughout to ensure compatibility with gasoline, alcohol, and gasoline/alcohol blends. The filter utilizes commonly available replacement cartridges that capture particles as small as 7 microns. The 2" diameter of the filter allows for convenient mounting in various locations within a vehicle for easy accessibility.
Features:
• Flows up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI
• Filters particles as small as 7 microns
• Machined from 6061-T6 aluminum with a black hard anodized finish
• Viton o-rings and gaskets ensure outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels

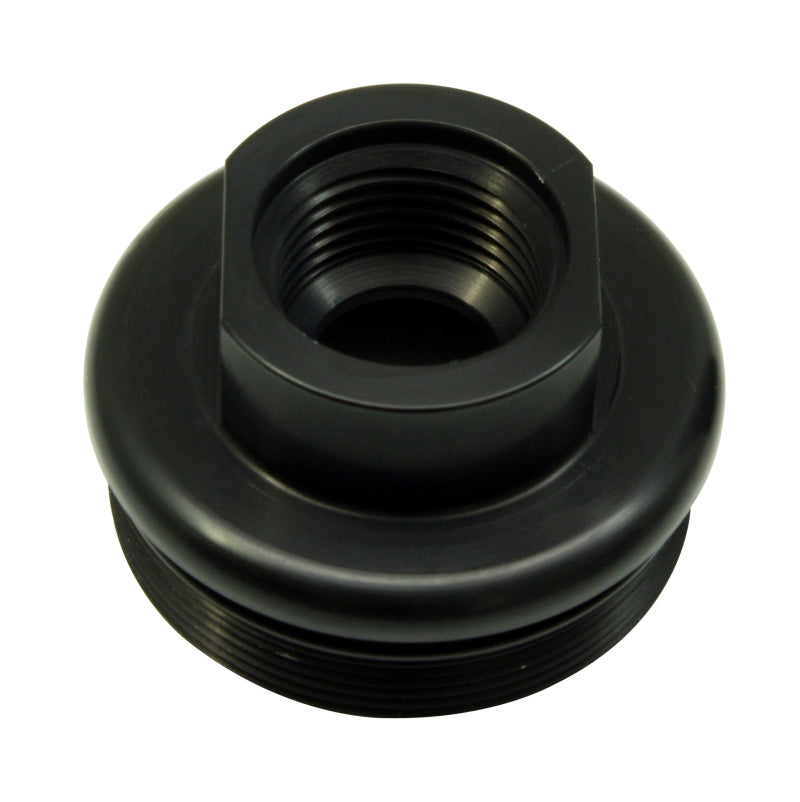

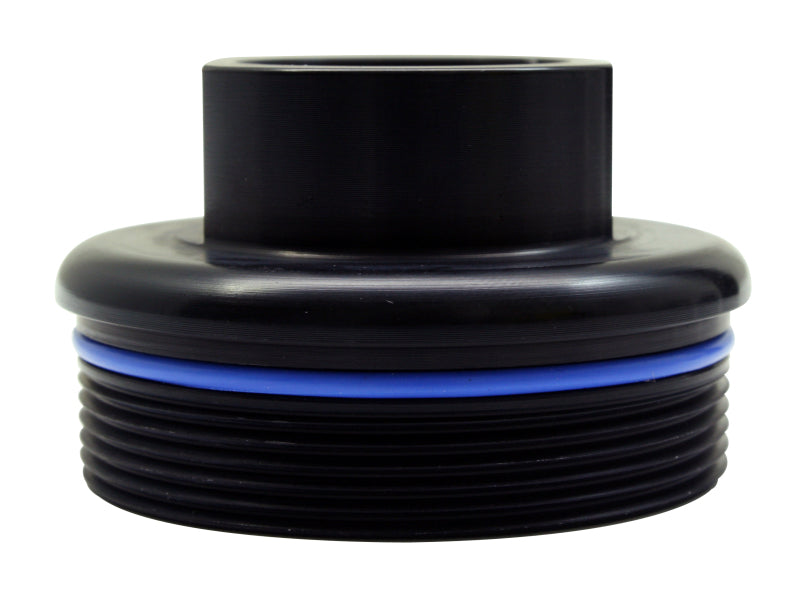

• End caps are machined with -10 AN female fittings with o-ring receiver groove
• End caps have pressure intensifiers for greater sealing of end gaskets
• 2" OD x 10" length for easy mounting

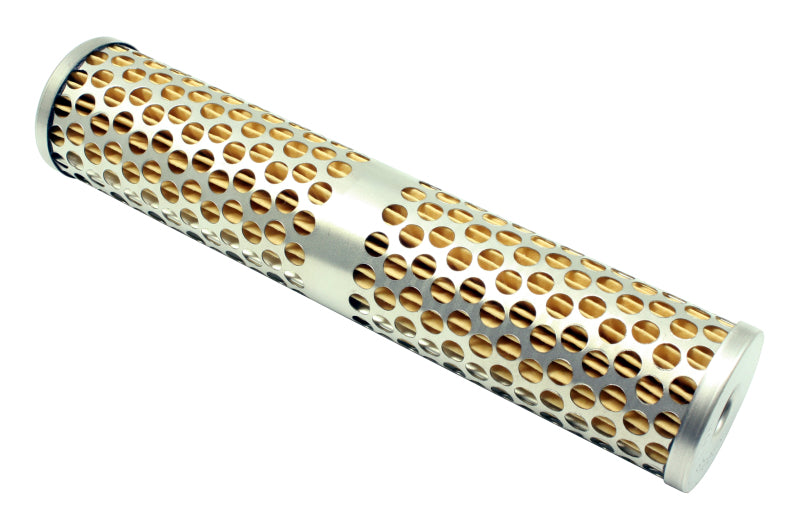

• Commonly available replacement filter cartridges

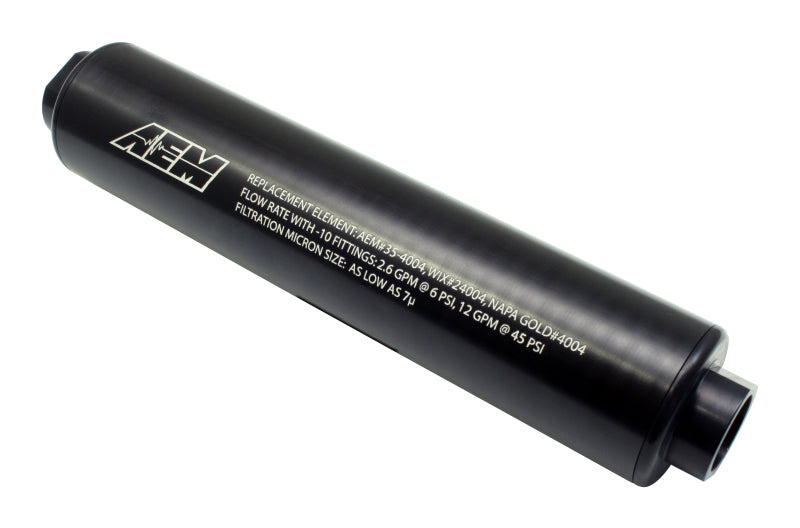

• Laser etched with AEM logo, flow and comes with filter replacement information
!
